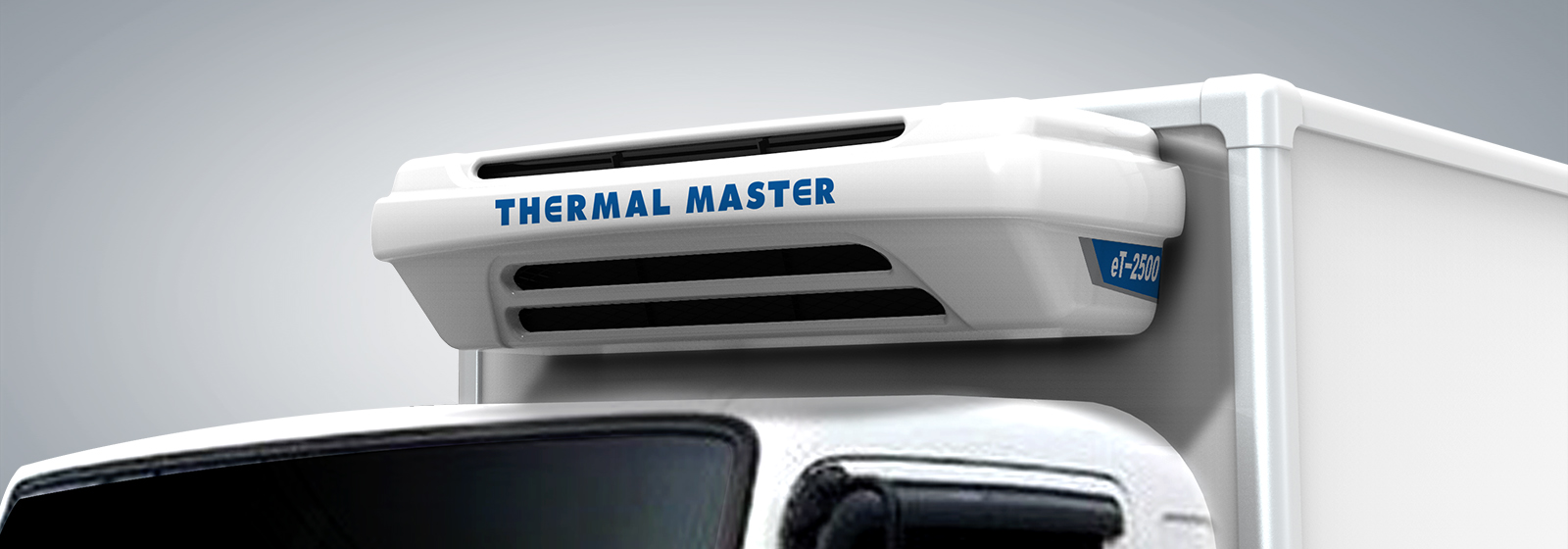

Electric Unit
eT-2500
Condenser
eT-2500
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,337 x L565 x H400 (mm) | 53.1 |
EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,276 x L670 x H190 (mm) | 23.8kg |
Controller

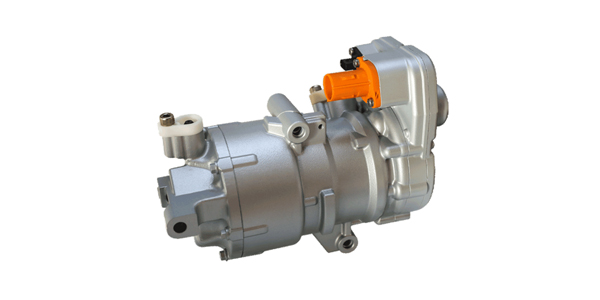

Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
Valeo
Valeo 540V (24V)
Refrigeration capacity at 30°C ambient
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 4,070W | 2,250W |
| -5℃ | – | 2,420W | 2,000W |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 4,070W | 2,250W |
| -5℃ | – | 2,420W | 2,000W |
| Evaporator airflow | 12v / 1,325㎥, 24v / 1,551㎥ | ||
| Defrost | Automatic hot gas defrost | ||

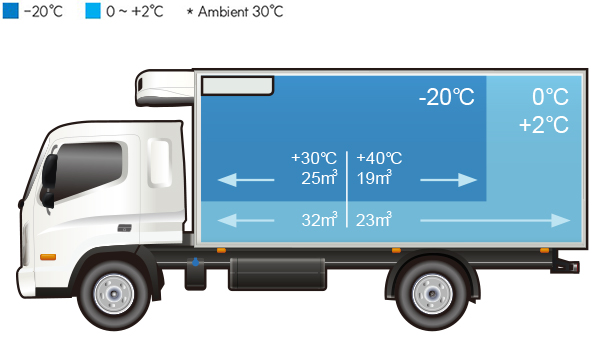

BOX VOLUME
