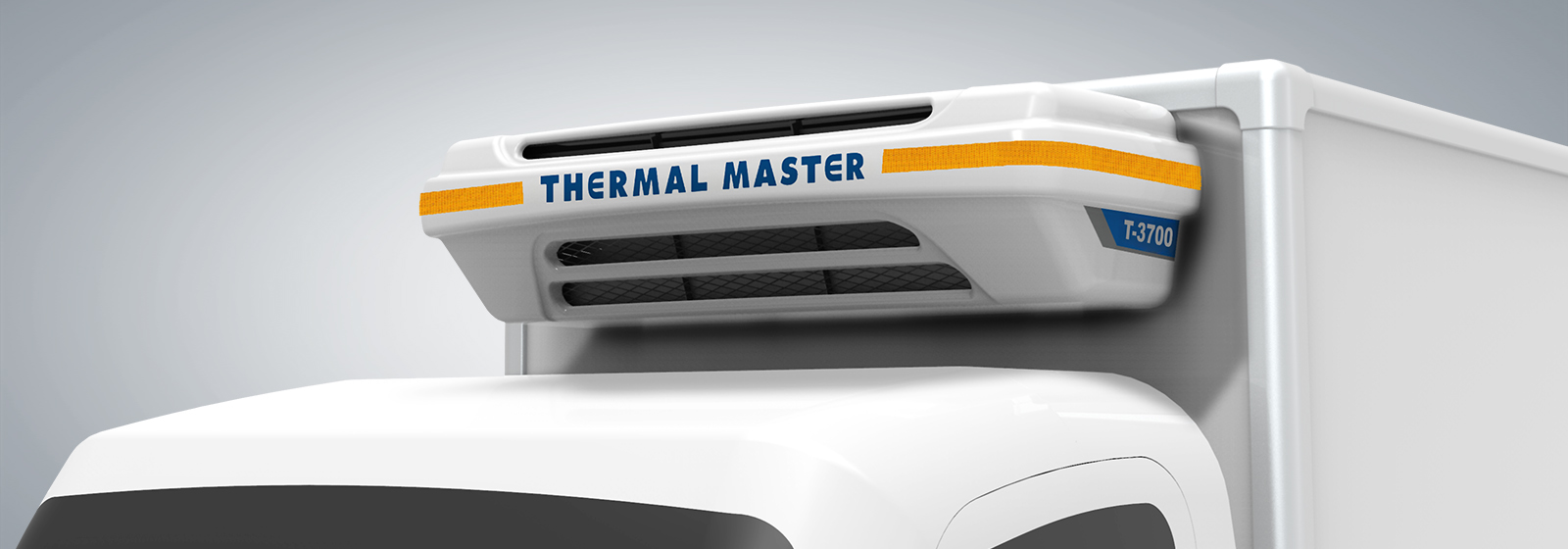

Direct Drive Unit
T-3700

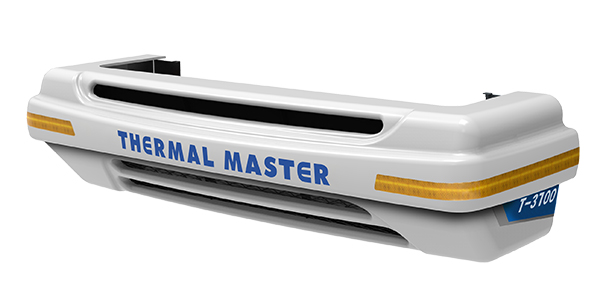

Condenser
T-3700
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,643 x L584 x H400 (mm) | 39kg |

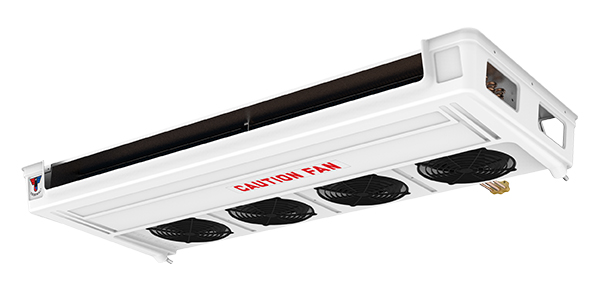

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,769 x L670 x H194 (mm) | 31kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM21
Displacement : 215cc / 10 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 6,538W | 5,529W |
| -5℃ | – | 3,292W | 2,941W |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 6,538W | 5,529W |
| -5℃ | – | 3,292W | 2,941W |
| Evaporator airflow | 2,704㎥/h | ||
| Defrost | Automatic hot gas defrost | ||

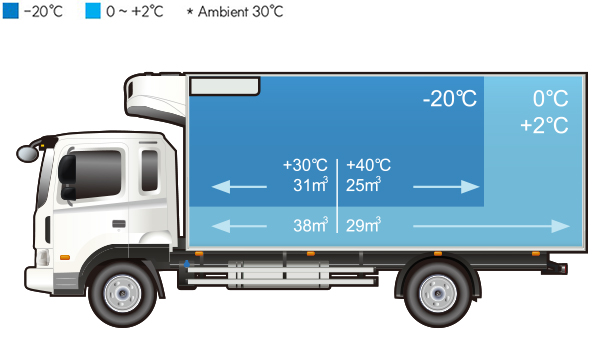

BOX VOLUME
