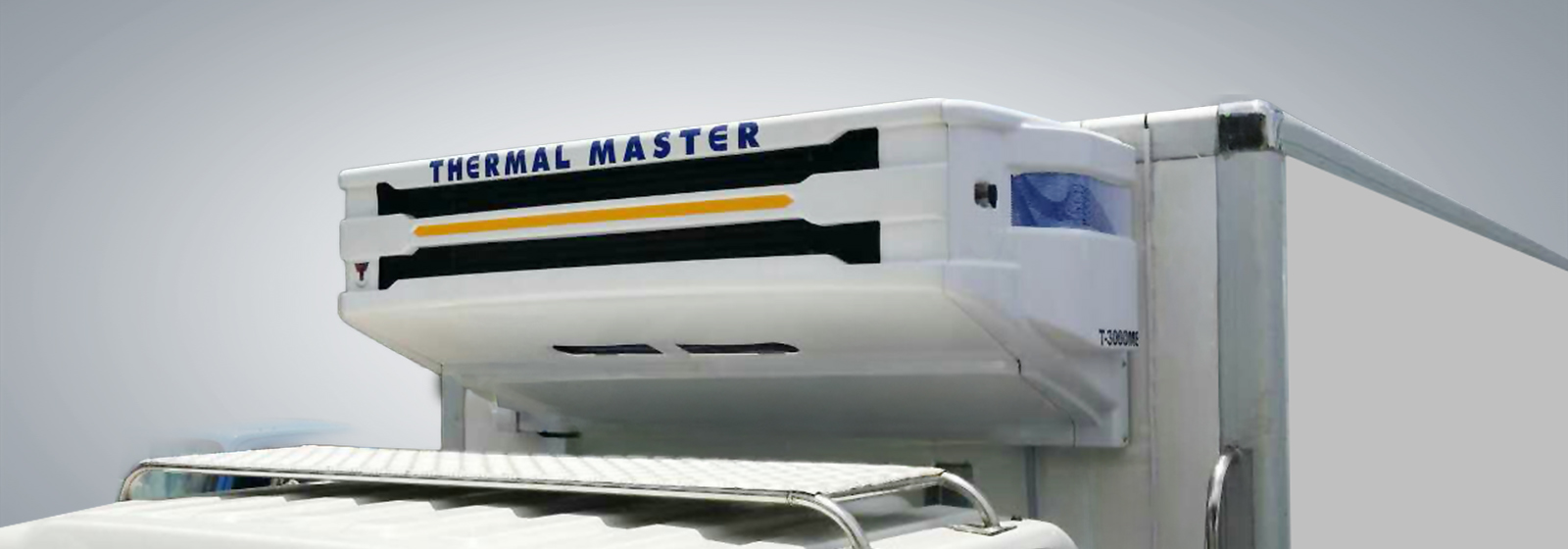

Mono Block Unit
T-3000MB

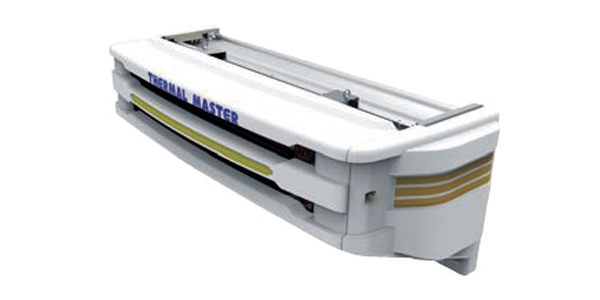

Condenser
T-3000MB, T-3000MB/H, T-3000MB/SE, T-3000MB/SEH (Option)
Nose-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W1,800 x L767 x H645 (mm) | 128kg |

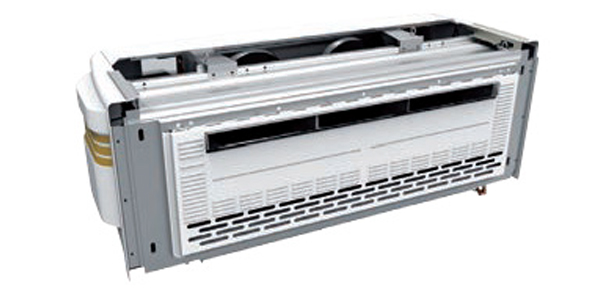

EVAPORATOR
| SIZE | |
|---|---|
| W1,600 x L29 x H588 (mm) |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM21
Displacement: 215cc / 10 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 5,460W | 5,200W | 3,550W |
| -5℃ | – | 2,920W | 2,780W | 1,620W |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 5,460W | 5,200W | 3,550W |
| -5℃ | – | 2,920W | 2,780W | 1,620W |
| Evaporator airflow | 12V / 1,875㎥/h, 24V / 2,147㎥/h | |||
| Defrost | Automatic hot gas defrost | |||

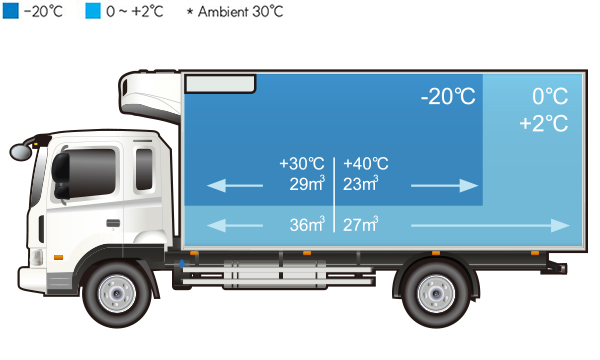

BOX VOLUME
