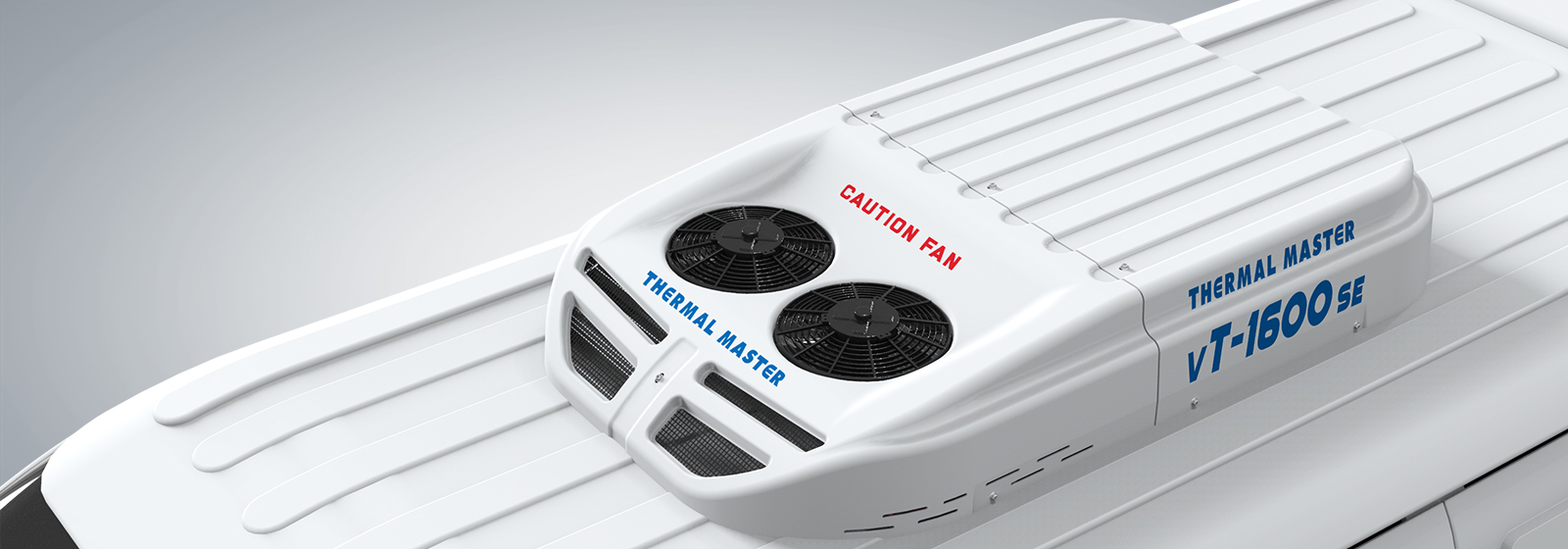

Direct Drive Unit
vT-1600
Condenser

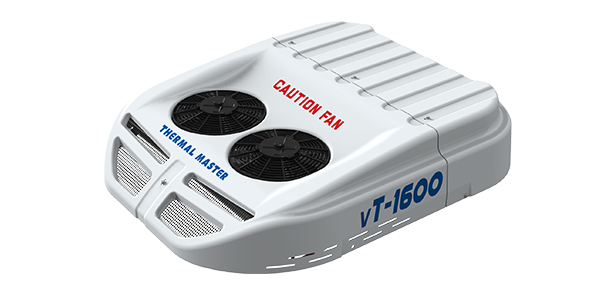

vT-1600, vT-1600H (Option)
Only Roof-mounting Condenser
| SIZE | Weight |
|---|---|
| W894 x L1,100 x H220 (mm) | 40kg |

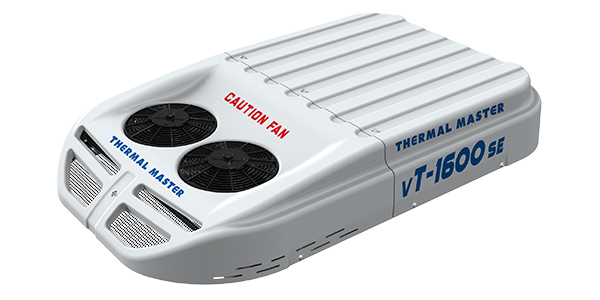

vT-1600SE, vT-1600SEH (Option)
Only Roof-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W894 x L1,485 x H220 (mm) | 65kg |
EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,026 x L649 x H187 (mm) | 19kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM15 / QP15
Displacement: 146cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 3,670W | 3,500W | 2,475W |
| -5℃ | – | 1,690W | 1,600W | 1,170W |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 3,670W | 3,500W | 2,475W |
| -5℃ | – | 1,690W | 1,600W | 1,170W |
| Evaporator airflow | – | |||
| Defrost | Automatic hot gas defrost | |||

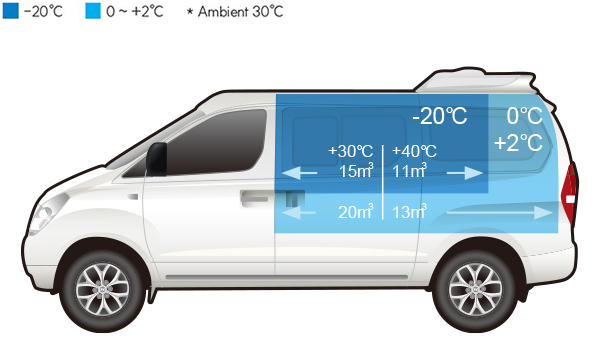

BOX VOLUME
