Direct Drive Unit
T-3000

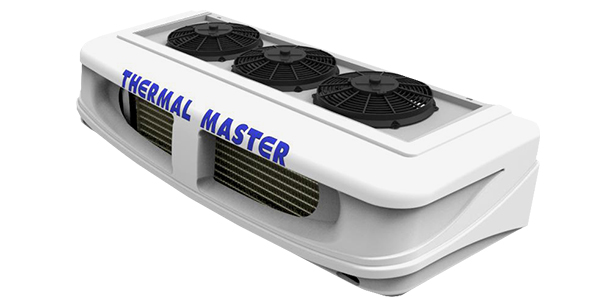

Condenser
T-3000, T-3000H (Option)
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,020 x L470 x H488 (mm) | 32kg |
T-3000SE, T-3000SEH (Option)
Nose / Roof-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W1,300 x L500 x H326 (mm) | 103kg |

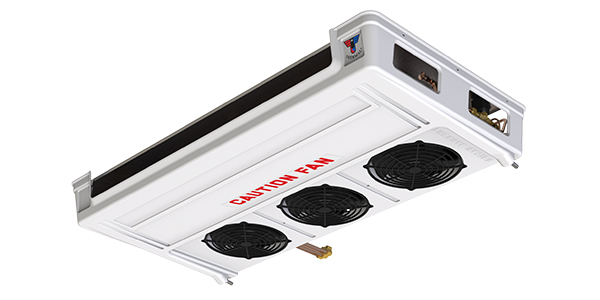

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,355 x L700 x H187 (mm) | 30kg |
Controller

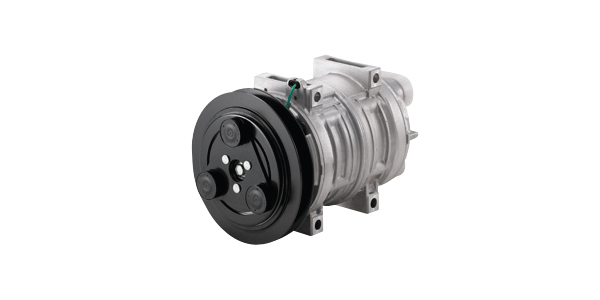

Compressor
Micro Process control
(Easy & error-free operation)
TM21
Displacement : 215cc / 10 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 4,650W | 4,185W | 1,450W |
| -5℃ | – | 2,450W | 2,205W | – |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 4,650W | 4,185W | 1,450W |
| -5℃ | – | 2,450W | 2,205W | – |
| Evaporator airflow | 12V / 1,875㎥/h, 24V / 2,147㎥/h | |||
| Defrost | Automatic hot gas defrost | |||

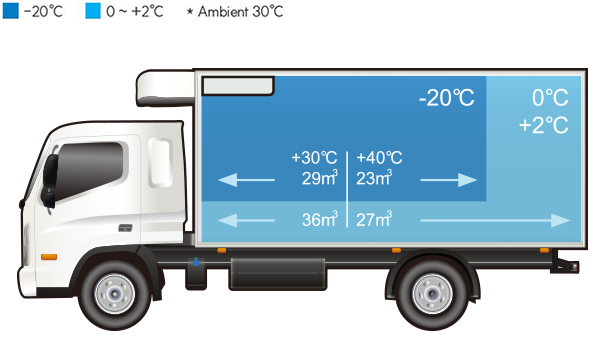

BOX VOLUME
