Direct Drive Unit
vT-2000
Condenser

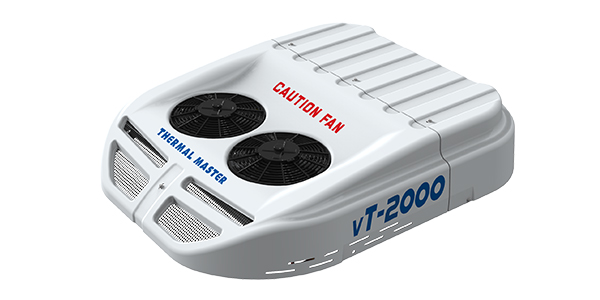

vT-2000, vT-2000H (Option)
Only Roof-mounting Condenser
| SIZE | Weight |
|---|---|
| W895 x L1,100 x H220 (mm) | 45kg |

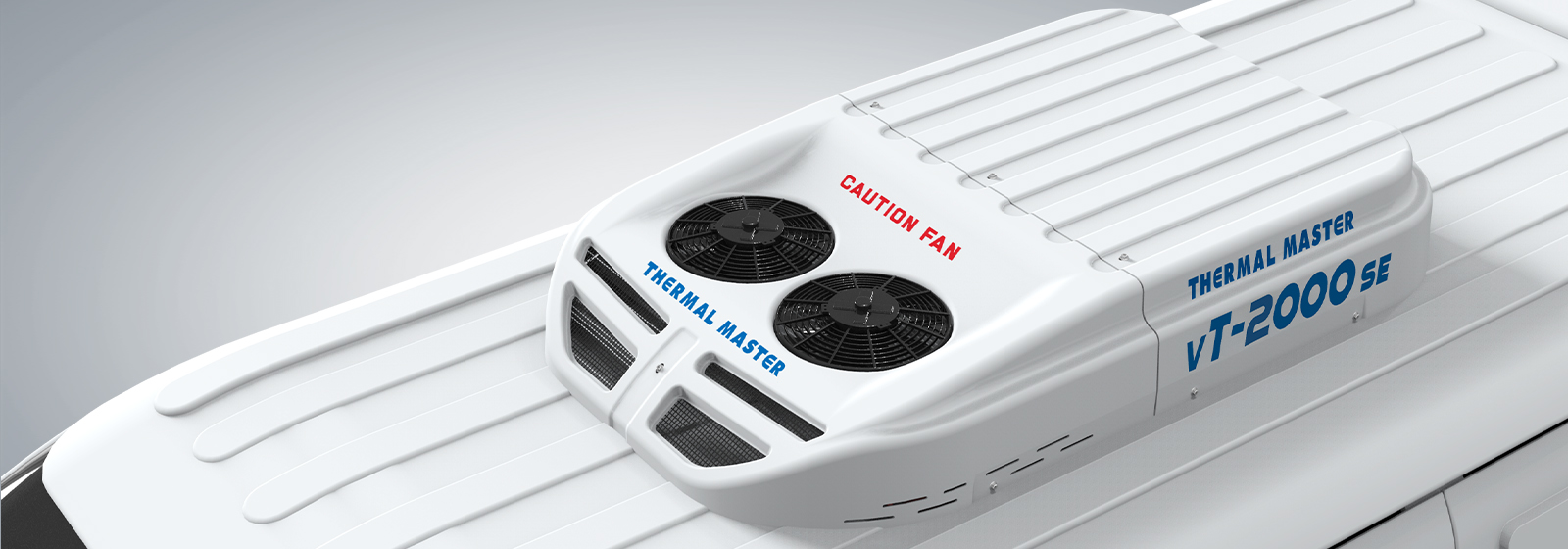

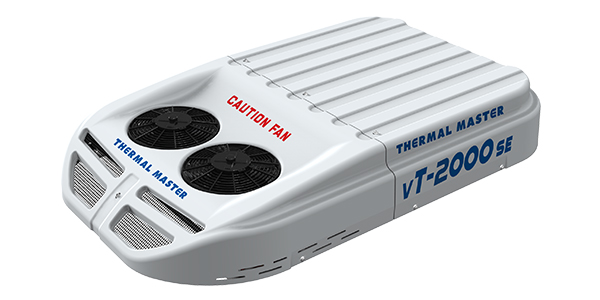

vT-2000SE, vT-2000SEH (Option)
Only Roof-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W895 x L1,485 x H220 (mm) | 71kg |
EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,225 x L700 x H187 (mm) | 23kg |
Controller

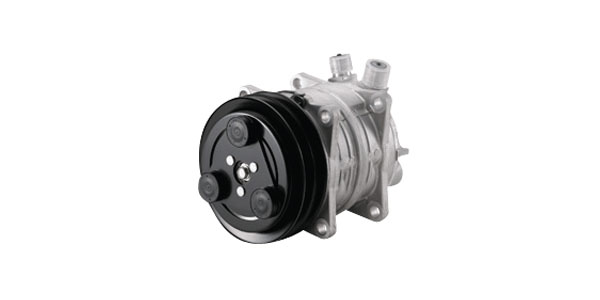

Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM16 / QP16
Displacement: 163cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 4,200W | 3,200W | 2,570W |
| -5℃ | – | 2,195W | 2,090W | 1,180W |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 4,200W | 3,200W | 2,570W |
| -5℃ | – | 2,195W | 2,090W | 1,180W |
| Evaporator airflow | – | |||
| Defrost | Automatic hot gas defrost | |||

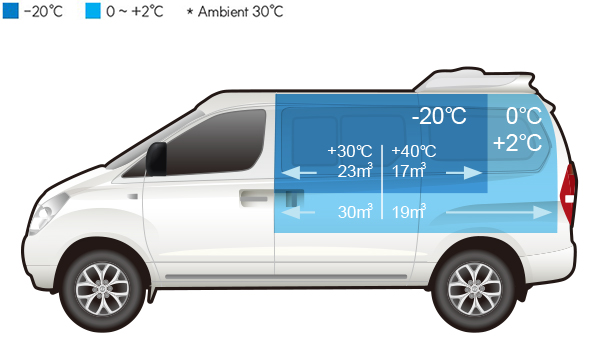

BOX VOLUME
