Direct Drive Unit
T-1400
Condenser

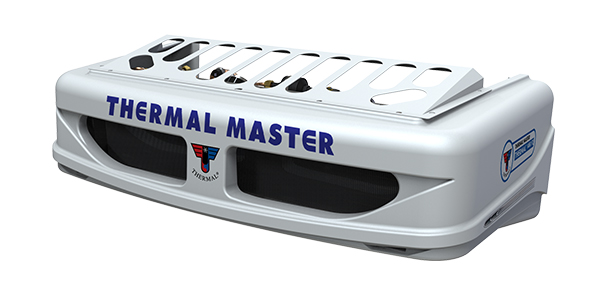

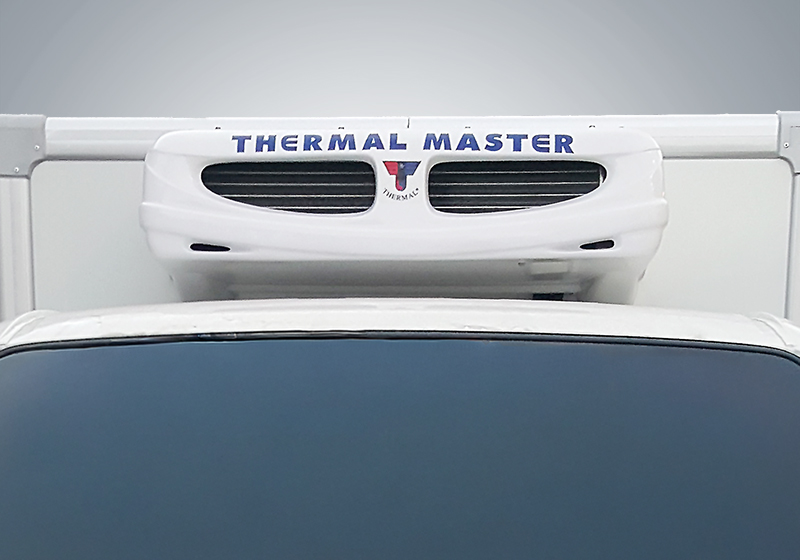

T-1400, T-1400H (Option)
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,010 x L505 x H350 (mm) | 22kg |

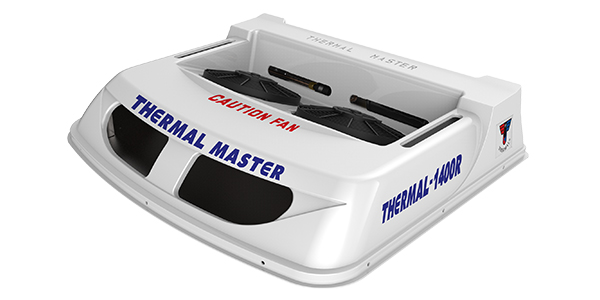

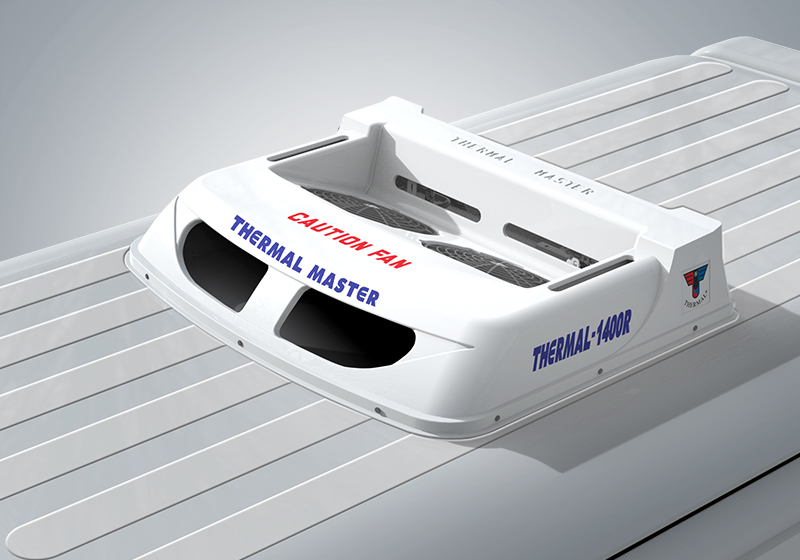

T-1400R, T-1400RH (Option)
Roof-mounting Condenser
| SIZE | Weight |
|---|---|
| W940 x L825 x H182 (mm) | 23kg |

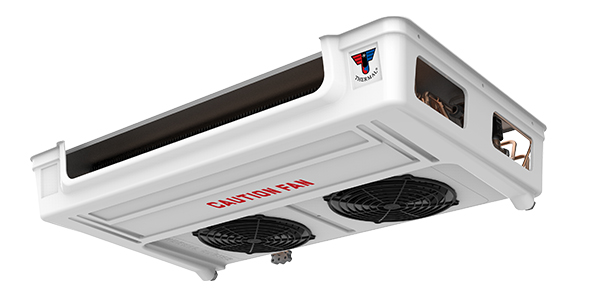

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,026 x L650 x H187 (mm) | 21kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM15 / QP15
Displacement : 146cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 2,965W | 2,800W | 2,520W |
| -20℃ | – | 1,600W | 1,440W |
| Defrost | Automatic hot gas defrost | ||

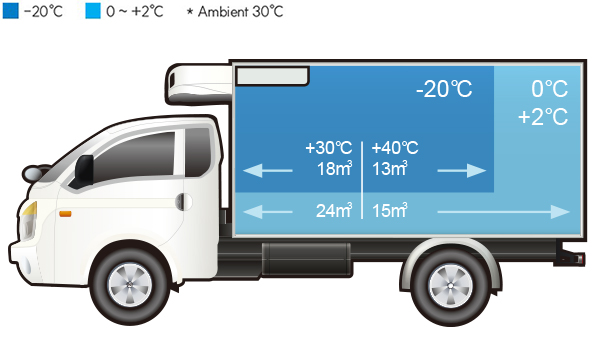

BOX VOLUME
