Diesel Powered Unit
Glacier-42SE

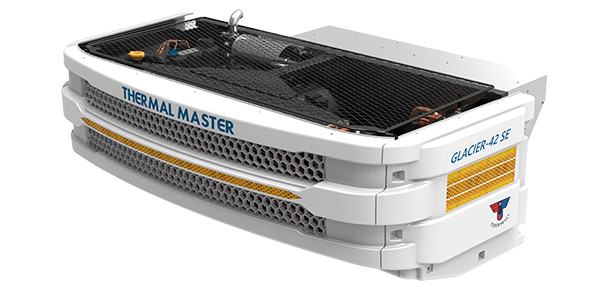

Condenser
GLACIER-42SE
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,930 x L930 x H618 (mm) | 550kg |

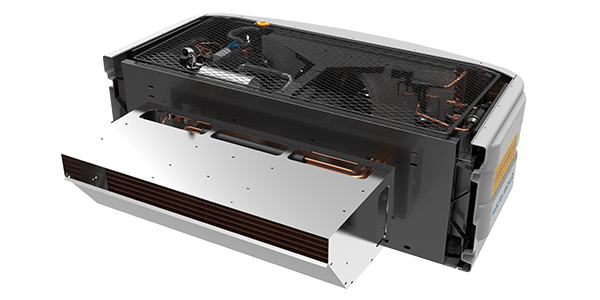

EVAPORATOR
| SIZE |
|---|
| W1,226 x L560 x H345 (mm) |
Controller

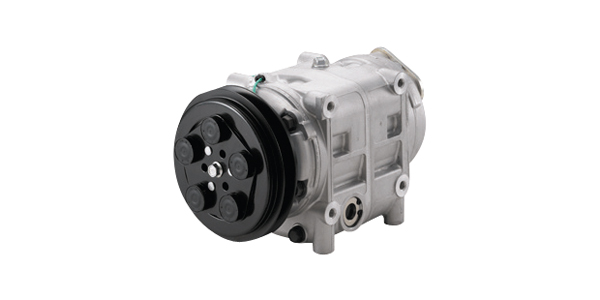

Compressor
Micro Process control
(Easy & error-free operation)
UNF - 330 or TM31
Dae dong
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 8,775W | 8,360W | 6,920W |
| -5℃ | – | 4,360W | 4,150W | 3,340W |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 8,775W | 8,360W | 6,920W |
| -5℃ | – | 4,360W | 4,150W | 3,340W |
| Evaporator airflow | 12V / 3,416㎥/h, 24V / 3,289㎥/h | |||
| Defrost | Automatic hot gas defrost | |||

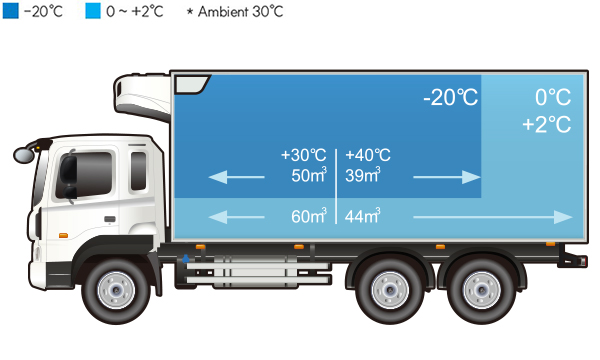

BOX VOLUME
