Direct Drive Unit
T-2600
Condenser
T-2600, T-2600R (Option)

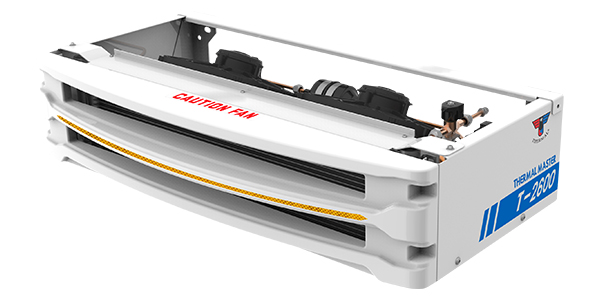

Nose / Roof-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,026 x L544 x H226 (mm) | 28kg |

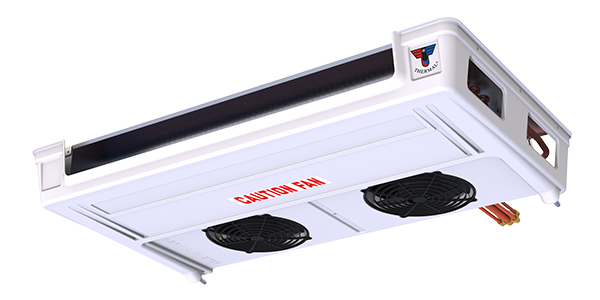

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,225 x L700 x H187 (mm) | 24kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM16 / QP16
Displacement : 163cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 3,878.9W | 3,474W |
| -5℃ | – | 2,066W | 2,107W |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 3,878.9W | 3,474W |
| -5℃ | – | 2,066W | 2,107W |
| Evaporator airflow | 12V / 1,435㎥/h, 24V / 1,487㎥/h | ||
| Defrost | Automatic hot gas defrost | ||
BOX VOLUME
