Electric Unit
T-1000E
Condenser
T-1000E

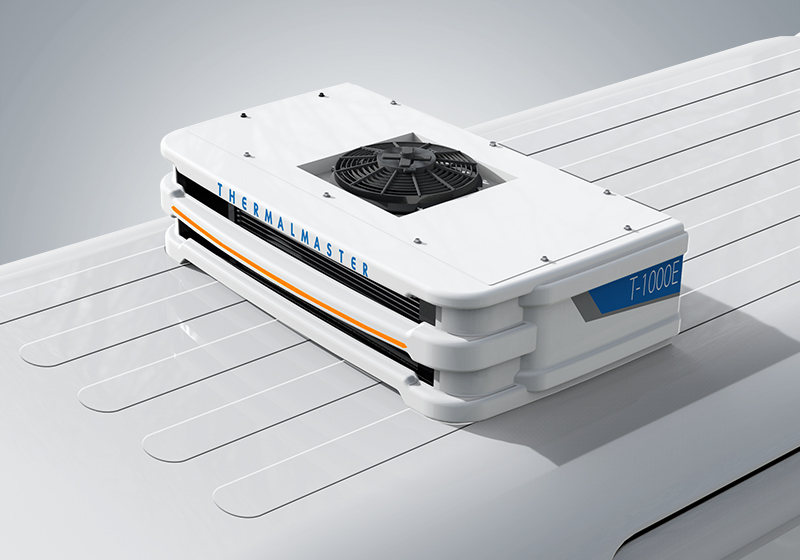

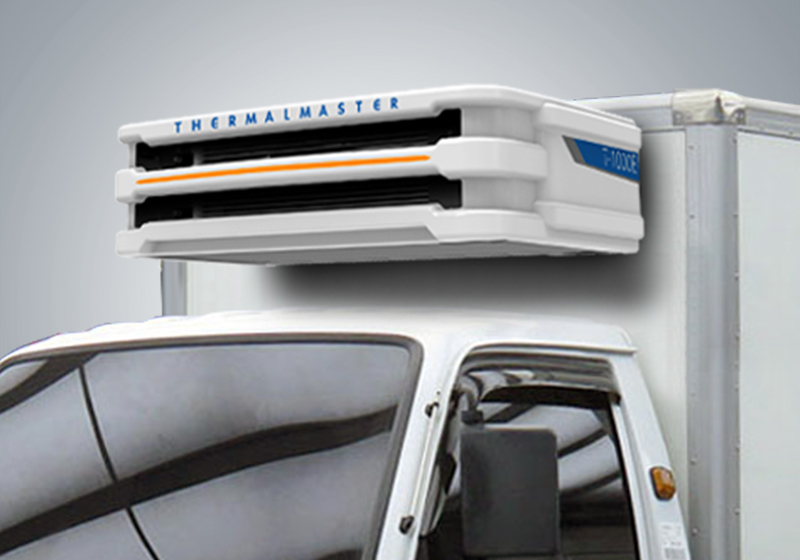

Nose / Roof-mounting Condenser
| SIZE | Weight |
|---|---|
| W960 x L550 x H275 (mm) | 43kg |

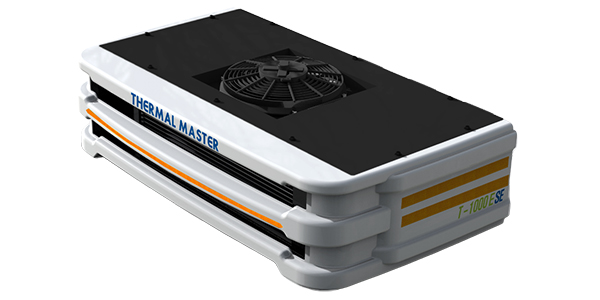

T-1000E/SE (Option)
Nose / Roof-mounting Condenser, (SE) Built-in Standby Condenser
| SIZE | Weight |
|---|---|
| W960 x L550 x H275 (mm) | 51kg |

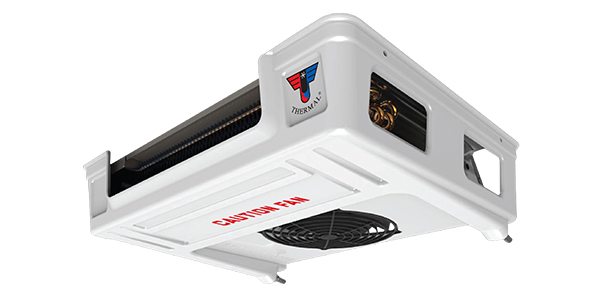

EVAPORATOR
| SIZE | Weight |
|---|---|
| W723 x L558 x H184 (mm) | 12kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time

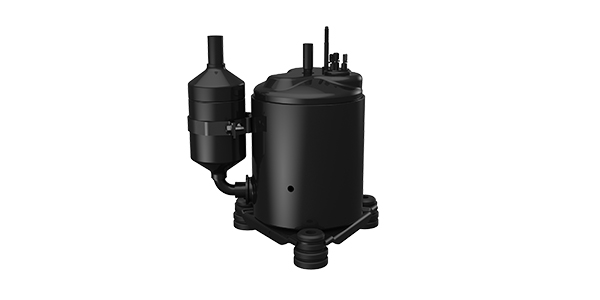

Samsung scroll compressor
(12V/24V)
Refrigeration capacity at 30°C ambient
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 1,050W | – | – |
| -5℃ | 830W | – | – |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 1,050W | – | – |
| -5℃ | 830W | – | – |
| Evaporator airflow | 721㎥/h | ||
| Defrost | Automatic hot gas defrost | ||

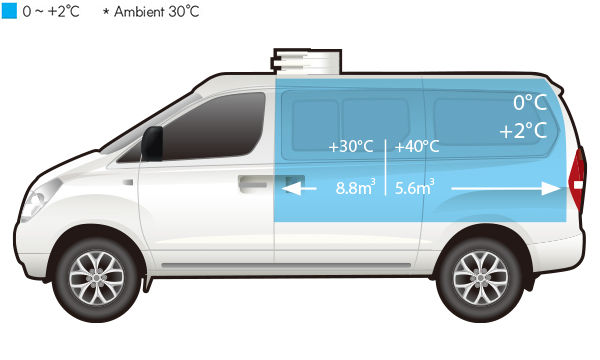

BOX VOLUME
