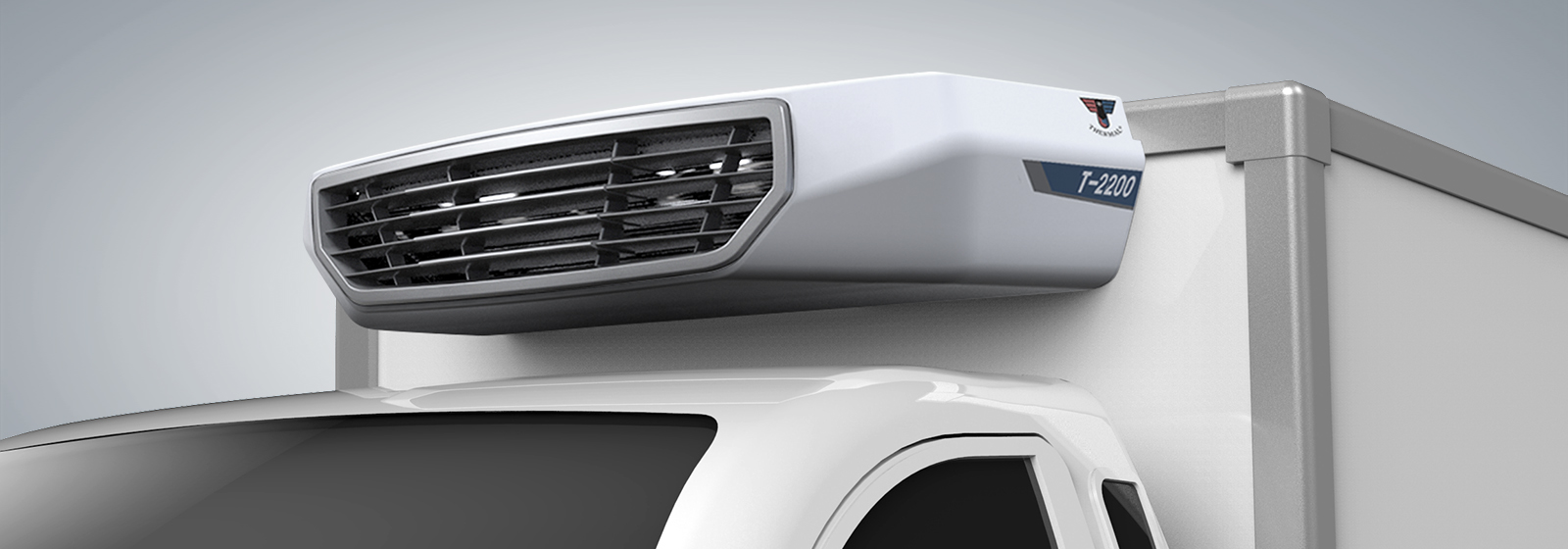

Direct Drive Unit
T-2200

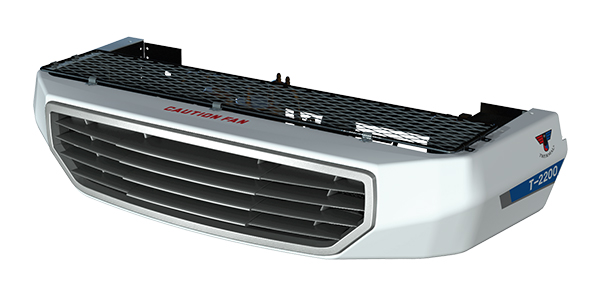

Condenser
T-2200
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,195 x L555 x H260 (mm) | 34kg |

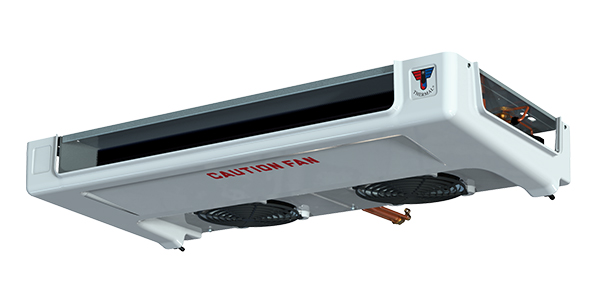

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,225 x L892 x H189 (mm) | 30kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM16 / QP16
Displacement : 163cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 3,700W | 3,300W |
| -5℃ | – | 2,200W | 1,980W |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 3,700W | 3,300W |
| -5℃ | – | 2,200W | 1,980W |
| Evaporator airflow | 12V / 1,325㎥/h, 24V / 1,551㎥/h | ||
| Defrost | Automatic hot gas defrost | ||

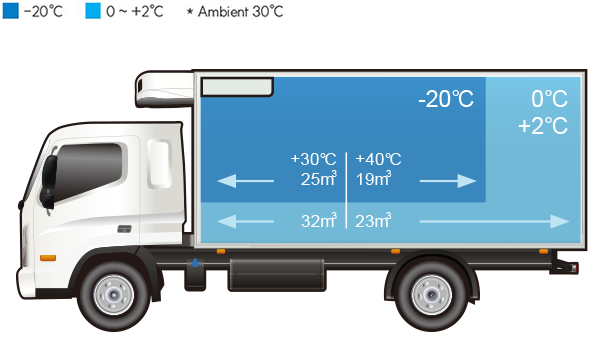

BOX VOLUME
