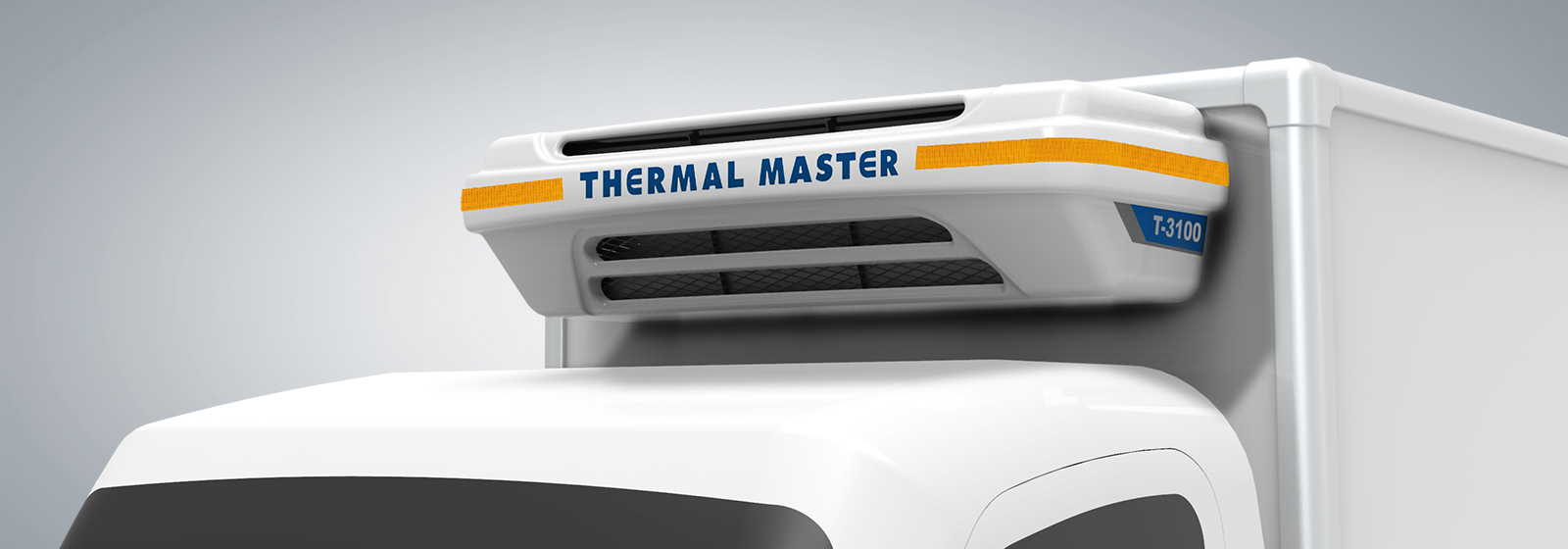

Direct Drive Unit
T-3100
Condenser
T-3100

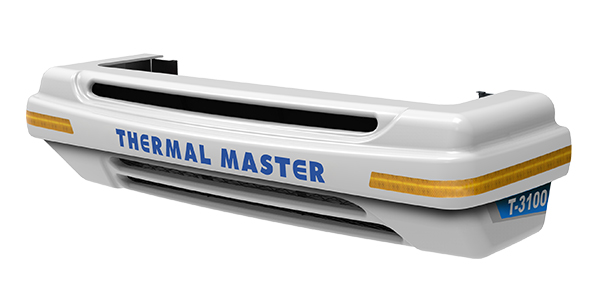

Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,337 x L564 x H400 (mm) | 38kg |

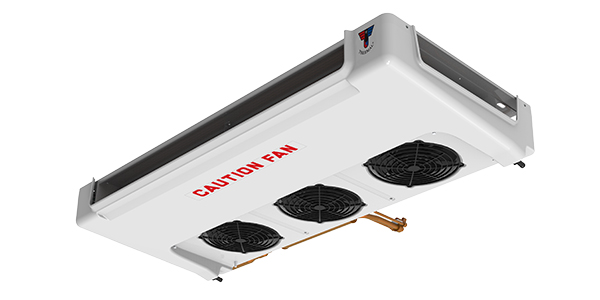

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,469 x L670 x H194 (mm) | 31kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM21
Displacement : 215cc / 10 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 5,688W | 5,400W |
| -5℃ | – | 3,100W | 2,960W |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | – | 5,688W | 5,400W |
| -5℃ | – | 3,100W | 2,960W |
| Evaporator airflow | 12V / 1,875㎥/h, 24V / 2,147㎥/h | ||
| Defrost | Automatic hot gas defrost | ||

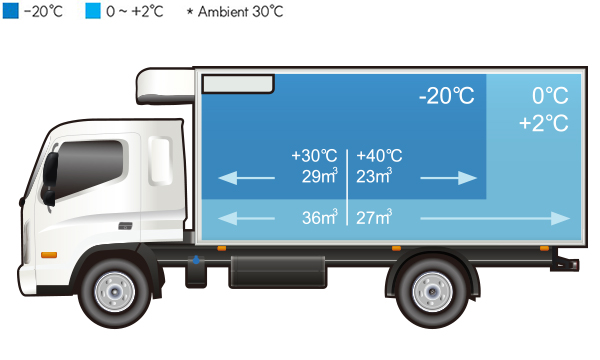

BOX VOLUME
