Direct Drive Unit
T-600SE
Condenser
T-600SE/R (Option)

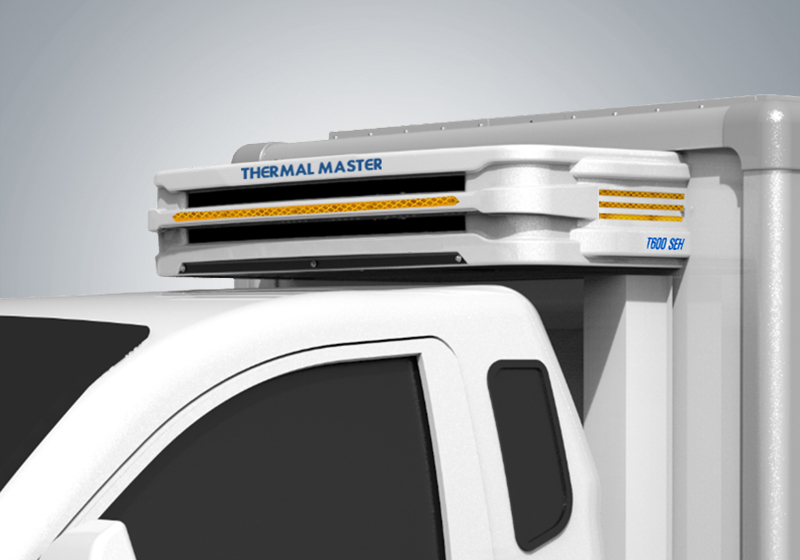

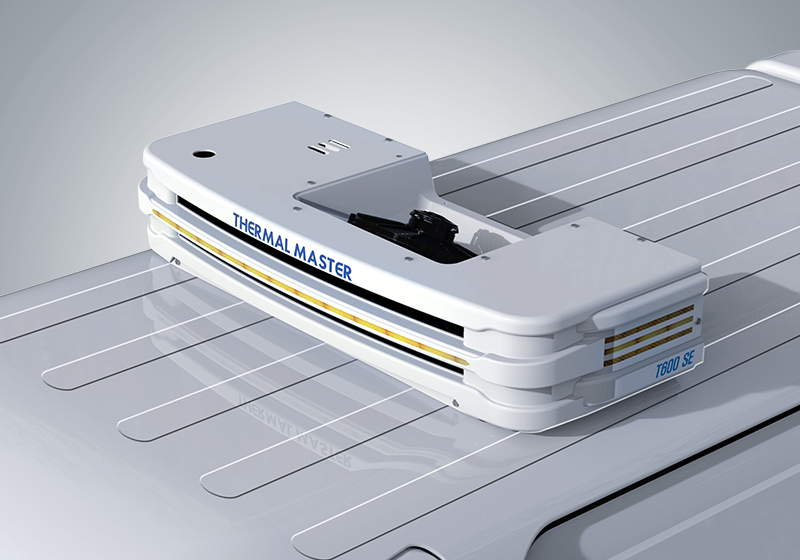

Nose & Roof-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W1,292 x L538 x H236 (mm) | 63kg |

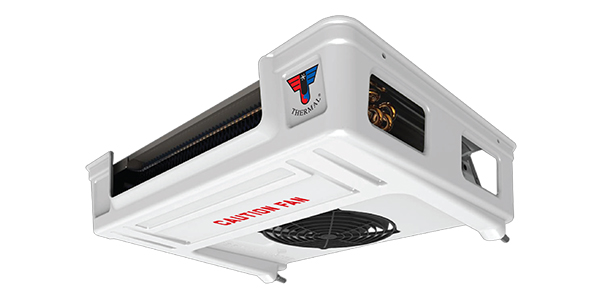

EVAPORATOR
| SIZE | Weight |
|---|---|
| W723 x L563 x H184 (mm) | 12kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM15 / QP15
Displacement : 146cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 1,986W | 1,787W | 1,110W |
| -5℃ | – | 1,092W | 983W | 793W |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 1,986W | 1,787W | 1,110W |
| -5℃ | – | 1,092W | 983W | 793W |
| Evaporator airflow | 721㎥/h | |||
| Defrost | Automatic hot gas defrost | |||
BOX VOLUME
