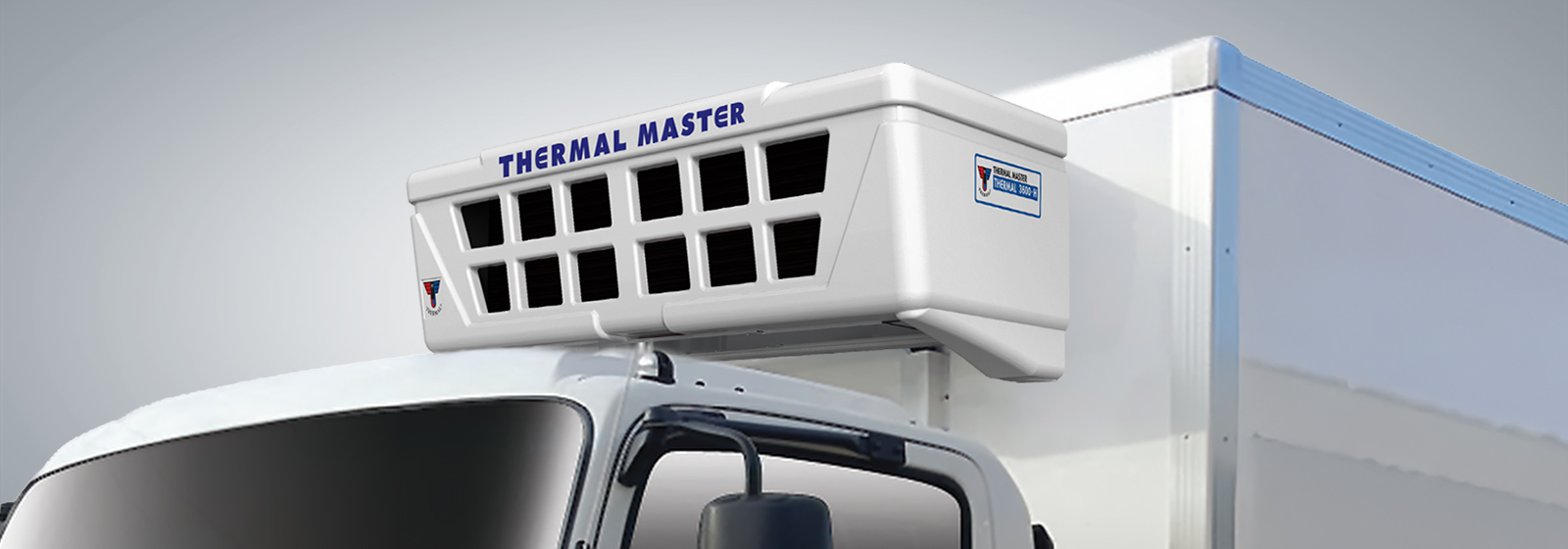

Direct Drive Unit
T-3600
Condenser
T-3600

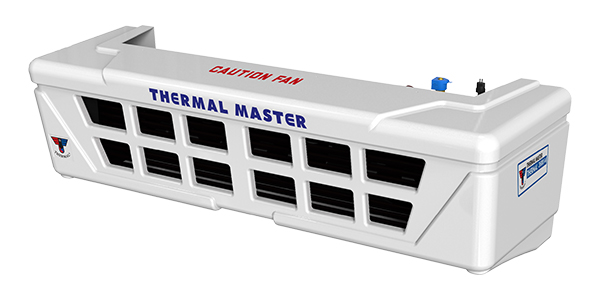

Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,540 x L560 x H460 (mm) | 43kg |
EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,652 x L670 x H187 (mm) | 35kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM21
Displacement : 215cc / 10 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 4,000W | 5,000W | 4,750W |
| -5℃ | – | 3,214W | 3,050W |
| Defrost | Automatic hot gas defrost | ||
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 4,000W | 5,000W | 4,750W |
| -5℃ | – | 3,214W | 3,050W |
| Evaporator airflow | – | ||
| Defrost | Automatic hot gas defrost | ||

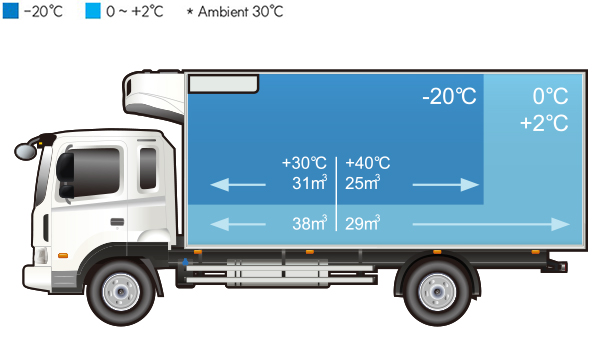

BOX VOLUME
