Direct Drive Unit
T-VAN

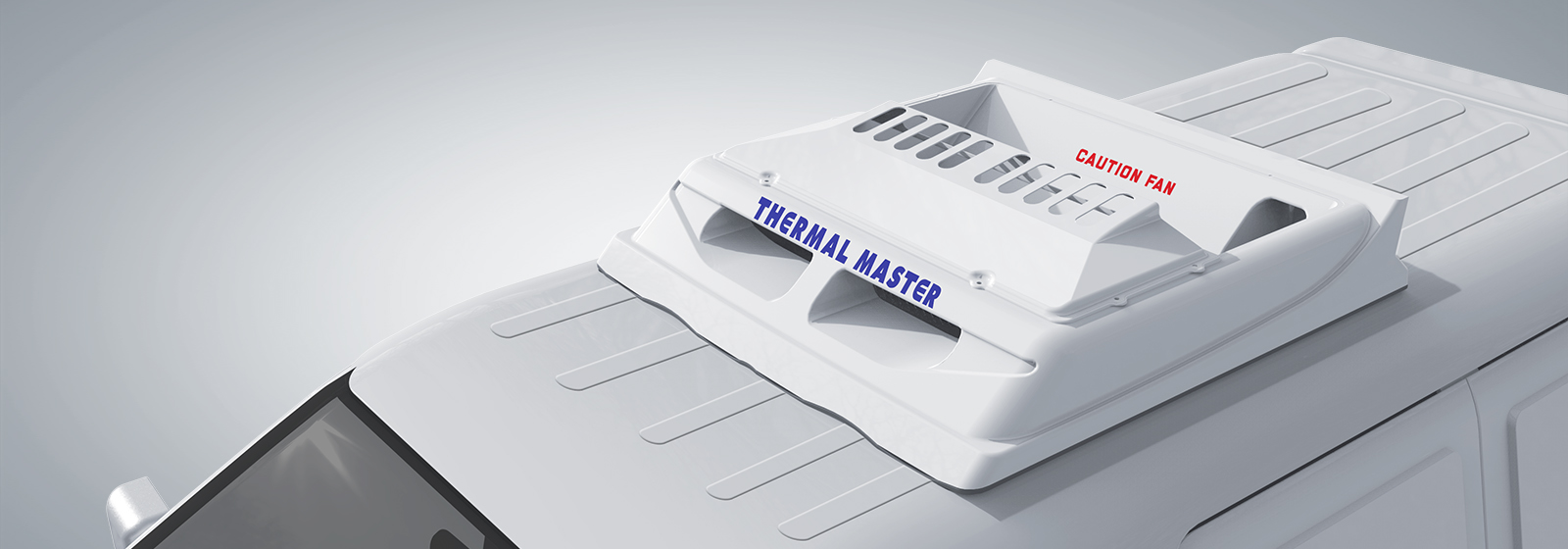

Condenser
T-VAN
Only Roof-mounting Condenserr
| SIZE | Weight |
|---|---|
| W1,230 x L1,130 x H280 (mm) | 32kg |

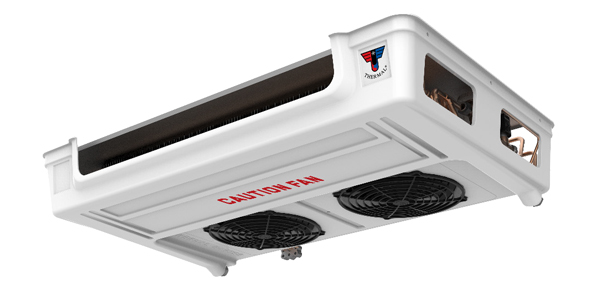

EVAPORATOR
| SIZE | Weight |
|---|---|
| W864 x L576 x H159 (mm) | 33kg |

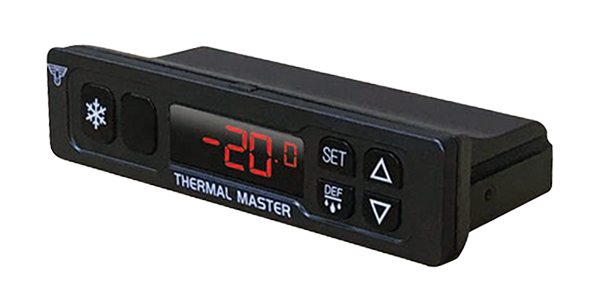

Controller
Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM15 / QP15
Displacement : 146cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 2,965W | 3,330W | 2,997W |
| -20℃ | – | 1,840W | 1,656W |
| Defrost | Automatic hot gas defrost | ||

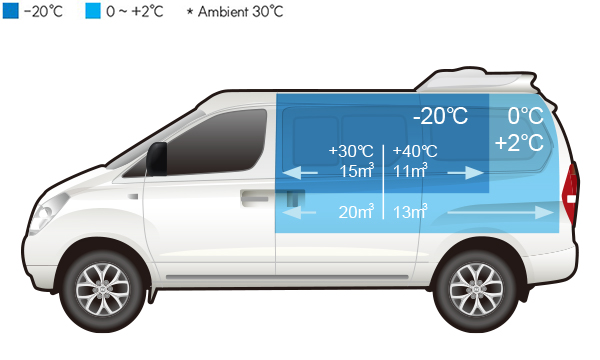

BOX VOLUME
