Direct Drive Unit
T-2500
Condenser

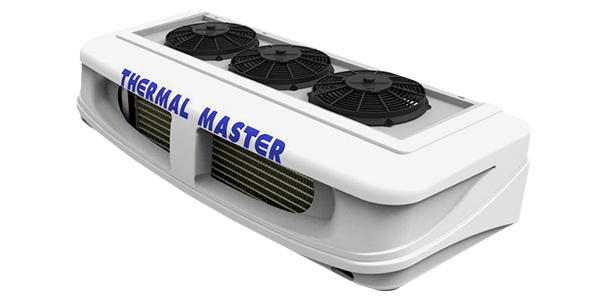

T-2500, T-2500H (Option)
Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,015 x L470 x H451 (mm) | 28kg |

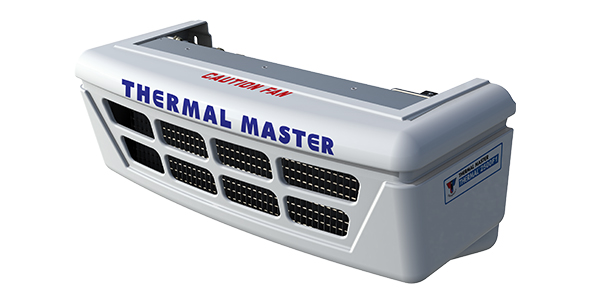

T-2500SE, T-2500SEH (Option)
Nose-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W1,300 x L500 x H350 (mm) | 111kg |

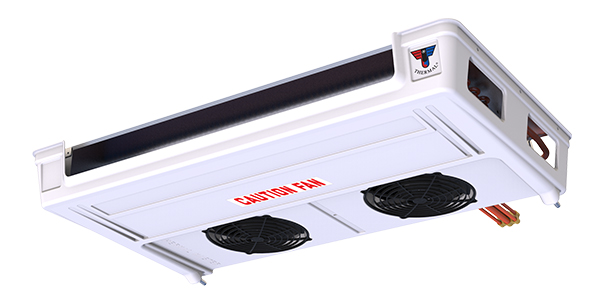

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,225 x L700 x H185 (mm) | 25kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
TM16 / QP16
Displacement : 163cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 4,302W | 3,987W | 1,350W |
| -5℃ | – | 2,076W | 2,102W | – |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 4,302W | 3,987W | 1,350W |
| -5℃ | – | 2,076W | 2,102W | – |
| Evaporator airflow | 12V / 1,325㎥/h, 24V / 1,551㎥/h | |||
| Defrost | Automatic hot gas defrost | |||

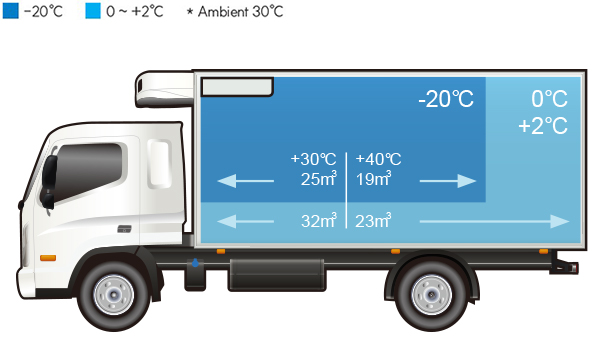

BOX VOLUME
