Direct Drive Unit
T-1500

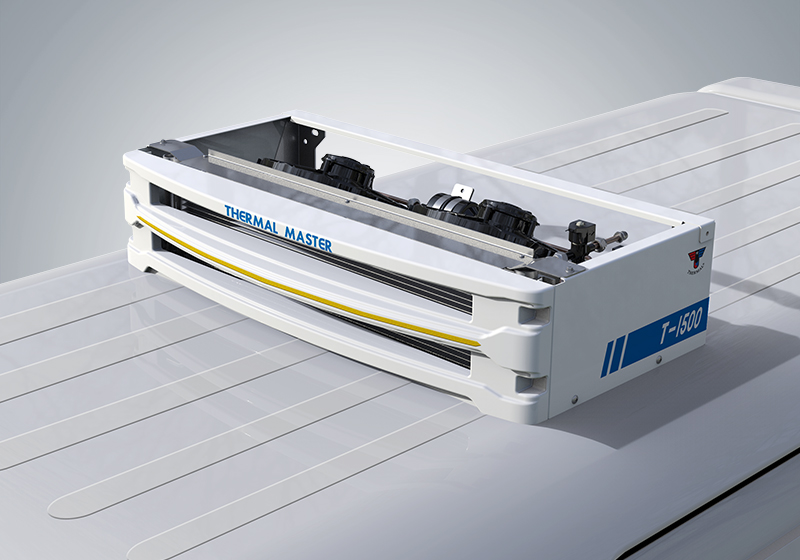

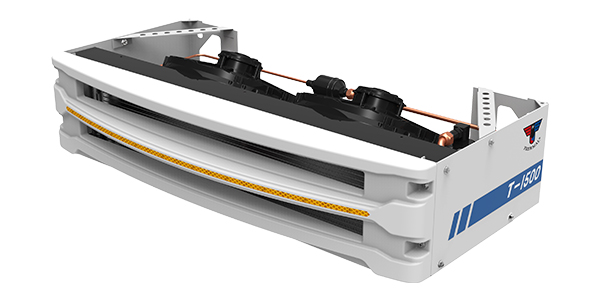

Condenser
T-1500, T-1500R (Option)

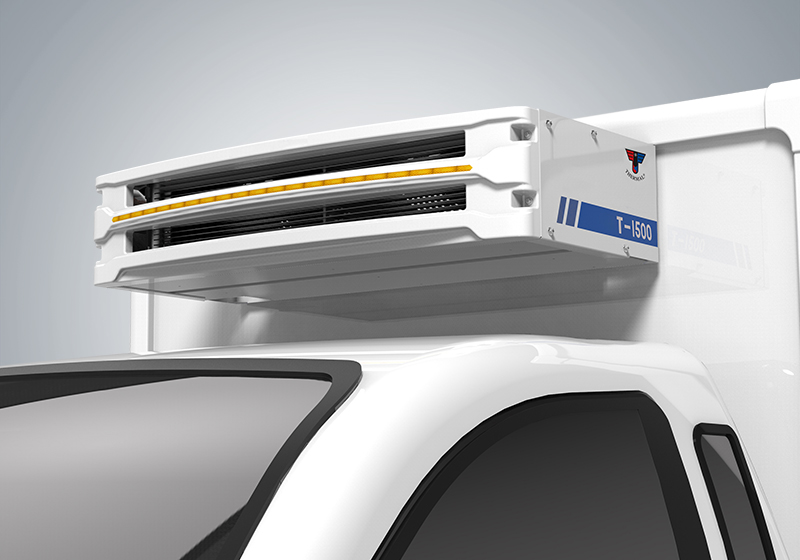

Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W1,026 x L544 x H226 (mm) | 25kg |
T-1500SE, T-1500SE/R (Option)
Nose / Roof-mounting Condenser, (SE) Built-in Standby
| SIZE | Weight |
|---|---|
| W1,292 x L538 x H236 (mm) | 63kg |

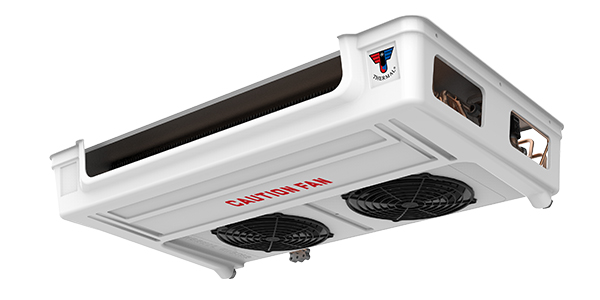

EVAPORATOR
| SIZE | Weight |
|---|---|
| W1,076 x L609 x H195.5 (mm) | 21kg |
Controller
Compressor
Micro Process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM15 / QP15
Displacement : 146cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 2,966W | 2,669W | 1,600W |
| -5℃ | – | 1,813W | 1,632W | 890W |
| Defrost | Automatic hot gas defrost | |||
| ROAD OPERATION | ROAD MODE | STAND by MODE | ||
| Refrigerant | R-134A | R-404a | R-452a | |
| 0℃ | – | 2,966W | 2,669W | 1,600W |
| -5℃ | – | 1,813W | 1,632W | 890W |
| Evaporator airflow | 12V / 1,260㎥/h, 24V / 1,347㎥/h | |||
| Defrost | Automatic hot gas defrost | |||

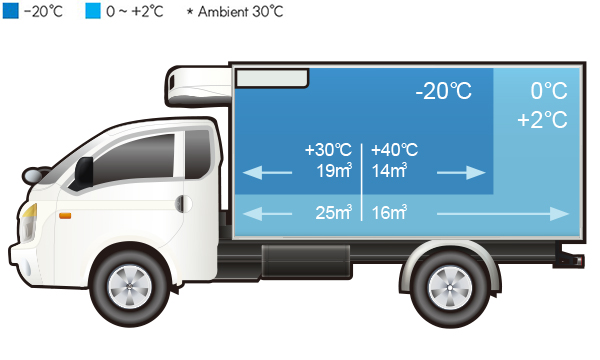

BOX VOLUME
