Direct Drive Unit
T-500
Condenser
T-500, T-500H (Option)

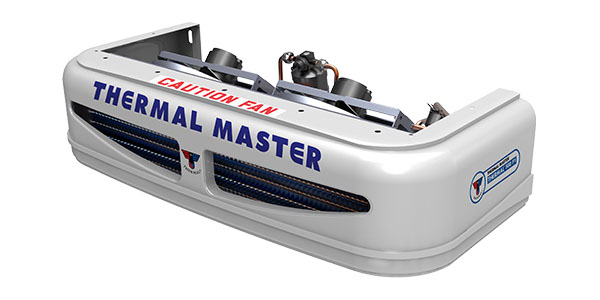

Nose-mounting Condenser
| SIZE | Weight |
|---|---|
| W905 x L405 x H270 (mm) | 17kg |
T-500R, T-500RH (Option)

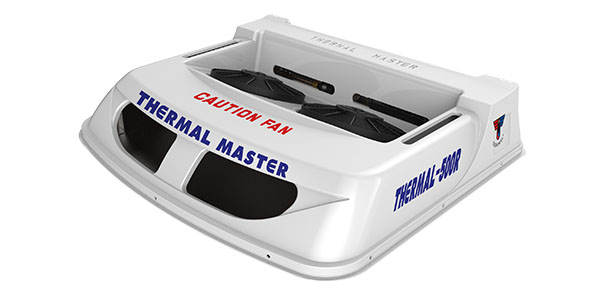

Roof-mounting Condenser
| SIZE | Weight |
|---|---|
| W940 x L825 x H182 (mm) | 33kg |

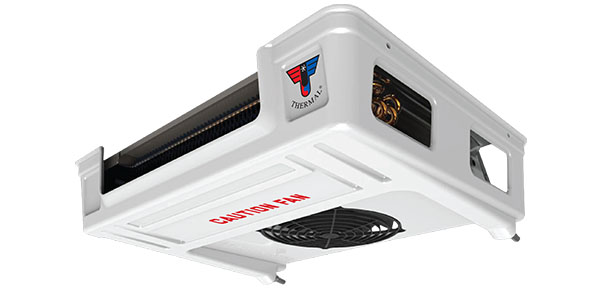

EVAPORATOR
| SIZE | Weight |
|---|---|
| W725 x L565 x H185 (mm) | 12kg |
Controller
Compressor
Micro Process control
Micro process control
(Easy & error-free operation)
Durable and reliable / User friendly / Manual & automatic defrost
Hour meters to record operation time
TM13
Displacement : 131cc / 6 cylinders
Refrigeration capacity at 30°C ambient / 2400RPM (Return air to evaporator)
| ROAD OPERATION | ROAD MODE | ||
| Refrigerant | R-134A | R-404a | R-452a |
| 0℃ | 1,100W | 1,000W | 900W |
| -20℃ | – | 650W | 600W |
| Defrost | Automatic hot gas defrost | ||

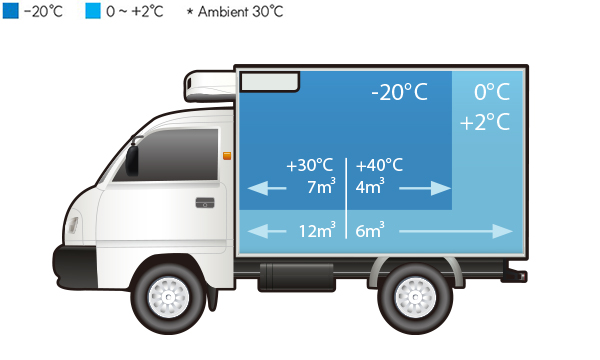

BOX VOLUME
